FEATURES

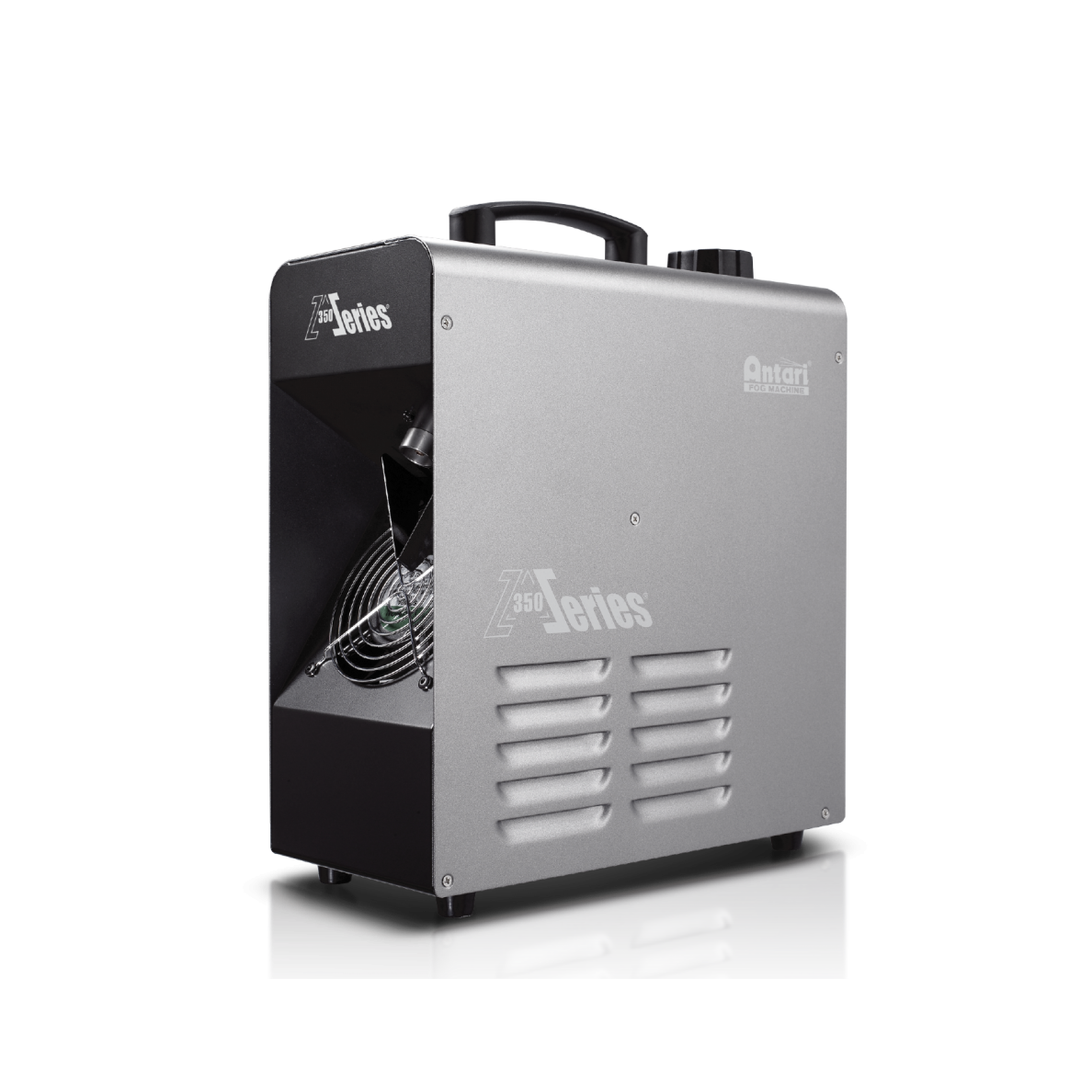

The Z-350 is the latest creation from Antari stemming from years of experience in Fazer development.

The adoption of the air pump technology not only enables the Z-350 to generate dry haze but also provides its heater with a self-cleaning function. The Z-350 comes with a larger tube, which substantially reduces the risk of heater clogging.

An extremely low fluid consumption rate grants a full tank (1.3 liters) of the Z-350 to produce more than 7 hours of non-stop hazing at maximum output.

The new DMX feature offer user intelligent control on Z-350 in an energy saving way. When a DMX signal is received, the machine powers up and starts heating up automatically. When the DMX signal is off, it automatically begins the self-cleaning process and then goes into “Sleep” mode.

The machine weighs only 8.5 kg. Being so light and compact allows the Z-350 to be transported and setup anywhere – whenever needed.

SPECIFICATION

Input voltage:

•  US model : AC 100-120V, 50/60HZ 6A
• EU model : AC 220-240V, 50/60Hz 3.15A

Rated power:

•  120V 700W
• 240V 750W

Warm-up time:

•  4.5 minutes (approx.)

Fluid consumption:

•  3 ml/min

Fluid tank capacity:

•  1.3 Liters (0.34 gallon)

Compatible fluid:

•  Antari FLG Heavy Fog Fluid
• Antari FLH Super Fog Fluid

Operating time:

•  7 hrs at max. output

Ambient temp.range:

•  0°C – 40°C (32°F – 104°F)

Control:

•  Manual, DMX 512

DMX channels:

• 2 channels

Connection:

• IEC (Power)
• XLR 3-pin (DMX)

Dimension: L 320 W 153 H 391 mm
Weight 8.5 kg
