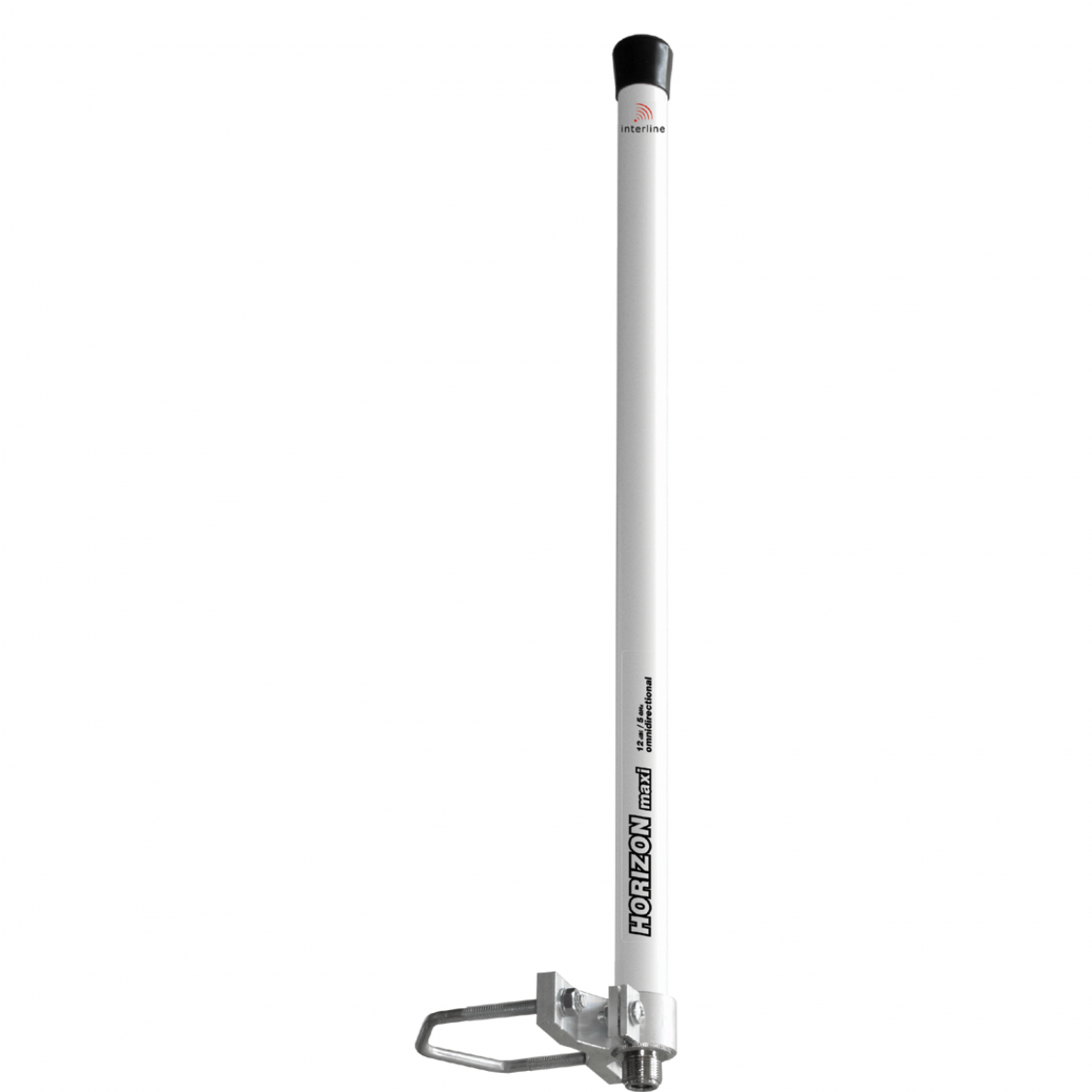

HORIZON IN-G12-F5458-V Omnidirectional Antena

  • HORIZON IN-G12-F5458-V Omnidirectional Antena

    HORIZON series antennas are one of the most famous omnidirectional antennas available on the market. Carefully constructed, small, perfectly suited for the base stations of medium-range using a single access point. In locations where there is a large number of other networks, particular attention should be on the selection of the proper range for the cells and antennas should not have too big gain, because the access points connected to them are likely to receive unwanted signals coming to them from distant networks.

    Prekės ženklas


    • Frequency (min): 5 400MHz

    • Frequency (max): 5 800MHz

    • Gain: a. 12dBi

    • VSWR (max): 1.50:1

    • Polarization: Vertical

    • Half Power Beam Width (-3dB) - horizontal: a. 360°

    • Half Power Beam Width (-3dB) - vertical: a. 6°

    • XPD (Cross Polarization Discrimination)>: 18dB

    • Max Composite Power: 2W

    • DC Ground: no

    • Impedance: 50Ω


    • Connector: N female

    • Mounting Diameter: ø 38…51mm

    • Dimensions (excl. mount): 465x25mm

    • Weight (incl. mount): 0.31kg


    • Enviroment: Outdoor

    • Windload: 130km/h

    • IP Rating: IP67

    • Temperature: -30°C ... 80°C
