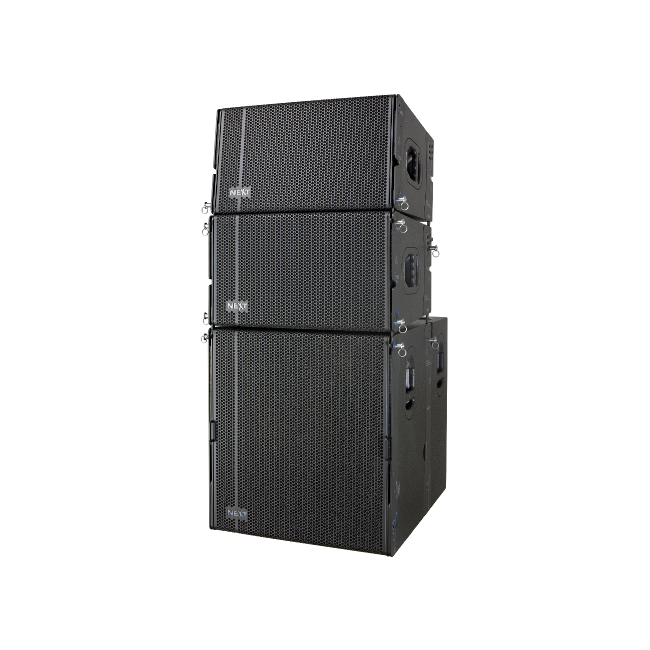

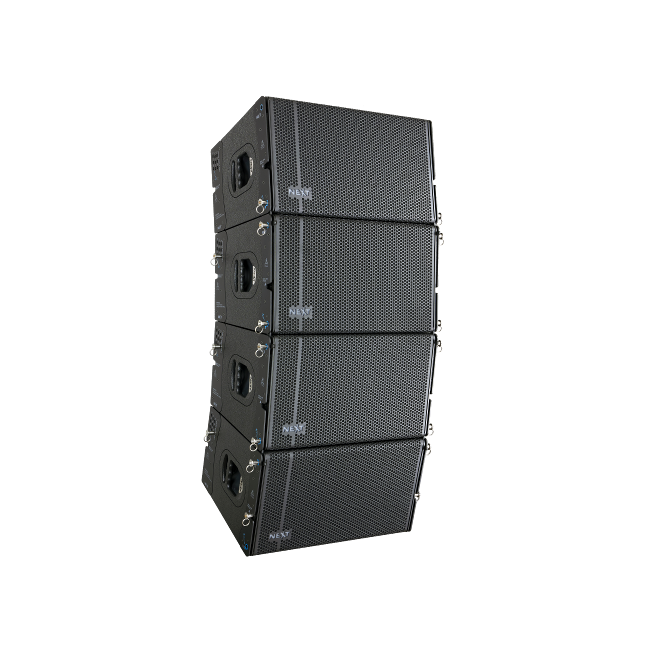

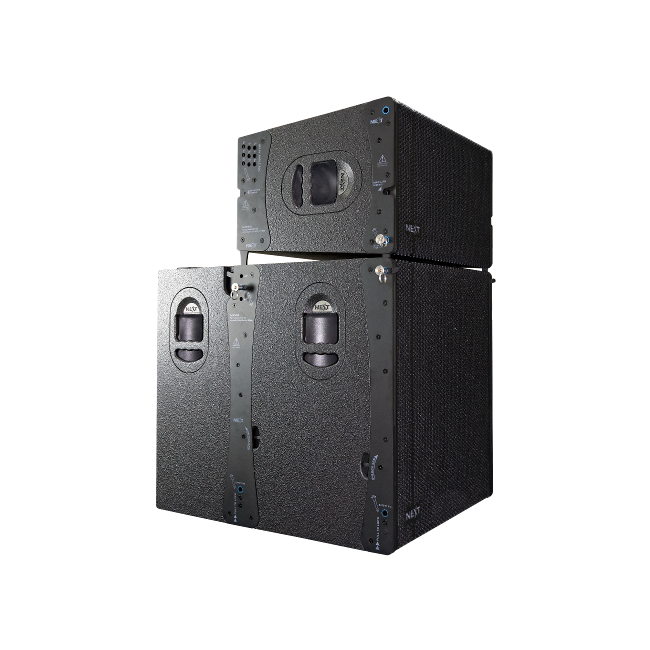

LA122A - Active 2-Way Compact Line Array Element

  • LA122A - Active 2-Way Compact Line Array Element

    The LA122A incorporates advanced neodymium speakers, custom made by B&C and a high performance DPA amplifier module, capable of generating 2200Wprg of high-definition power for a very high acoustic pressure for medium to large scale applications.

    Prekės ženklas
    NEXT
  • Technical Data

    • Speaker Type: Active 2-Way Line Array Element

    Acoustical Data

    • Frequency Response (-6dB): 58Hz - 19.000Hz

    • Calculated Max. SPL (Cont/Peak): 129dB/135dB (Full-Space)

    • Coverage Angle -6dB (HxV): 90° x 8° or 120° x 8° with optional accessory

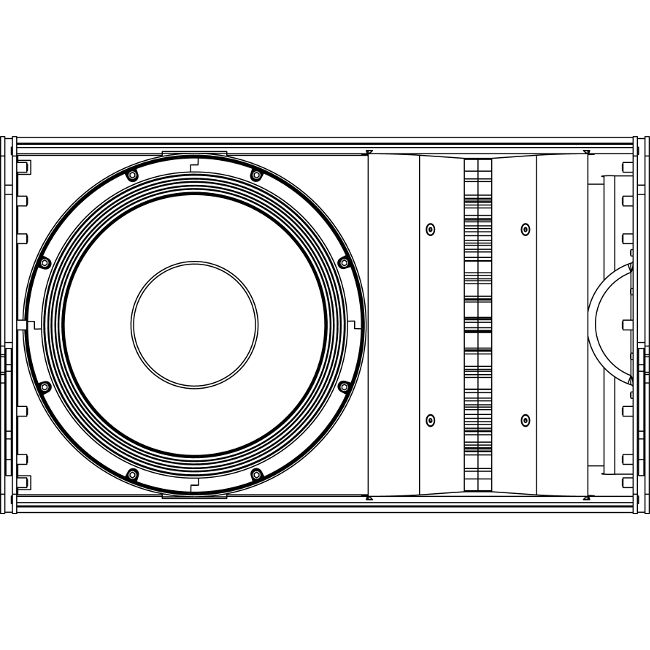

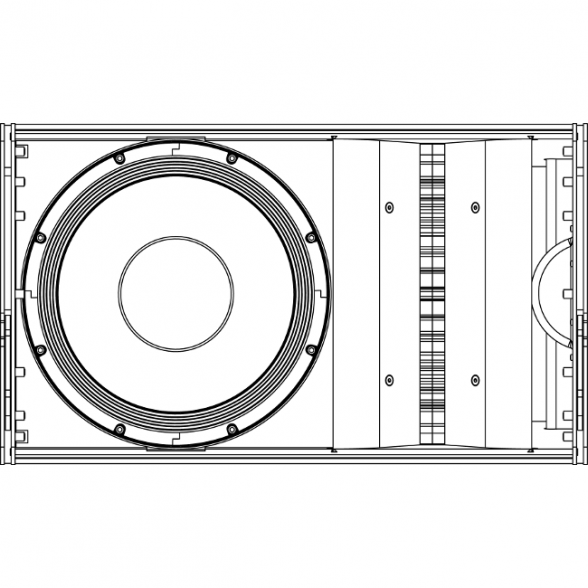

    Drivers

    • Low Frequency: 1 x 12" (300mm), 3" (76mm) VC, Neodymium, B&C custom speaker

    • High Frequency: 2 x 1.4" (36mm) exit, 2.5" (65mm) VC, B&C custom compression driver





    Electrical Data

    • Connectors: Signal: 2 x XLR ; Power: 2 x powerCON





    Amplifier Module

    • Amplifier Technology: 2 channel switched mode class D with DSP

    • Section Power (RMS/Program/Peak) LF: 1100W/1480W/2960W

    • Section Power (RMS/Program/Peak) HF: 550W/740W/1480W

    • Controller: PC controlled Networkable DSP 24bit/48kHz

    • System Presets: 6 Factory and 2 User, selectable via software or rear panel switch

    • PC Control: Via RS485 and suplied software "SOUNDWARE"

    • DSP Adjustable Parameters: 6 PEQ, Delay, HPF, LPF, Bass Enhancer, Level, Polarity, Mute

    • AC Operating Voltage: 180V - 245VAC

    • Nominal Power Consumption: 770W

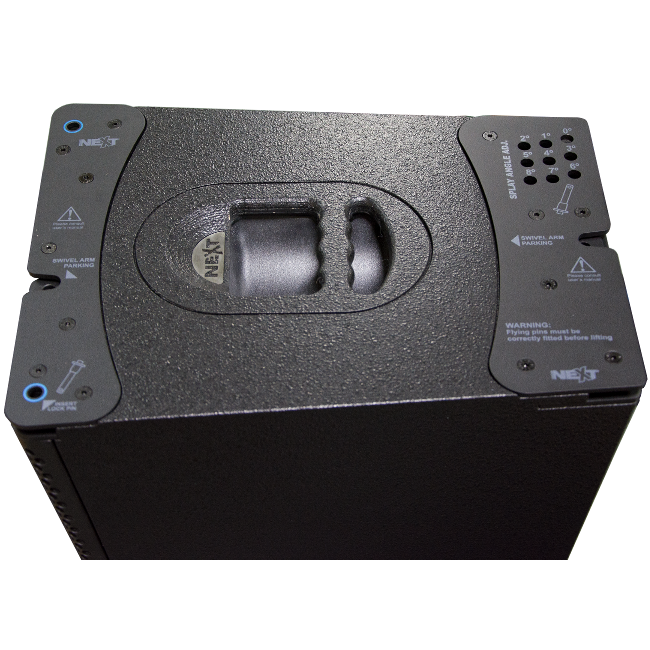

    Enclosure

    Dimensions (WxHxD): 602 x 350 x 465mm (23.7 x 13.78 x 18.31in)

    Net Weight: 36kg (79.4lb)
