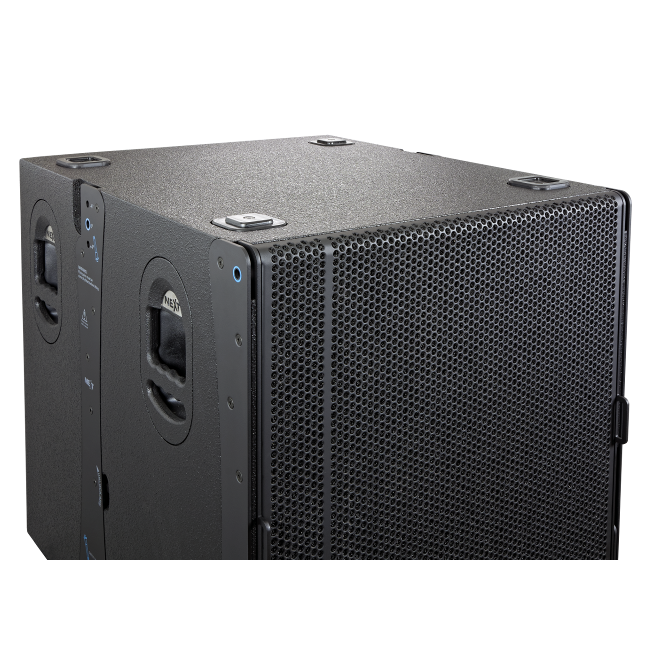

LAs118A - Active Hybrid-Horn Arrayable Subwoofer

  • LAs118A - Active Hybrid-Horn Arrayable Subwoofer

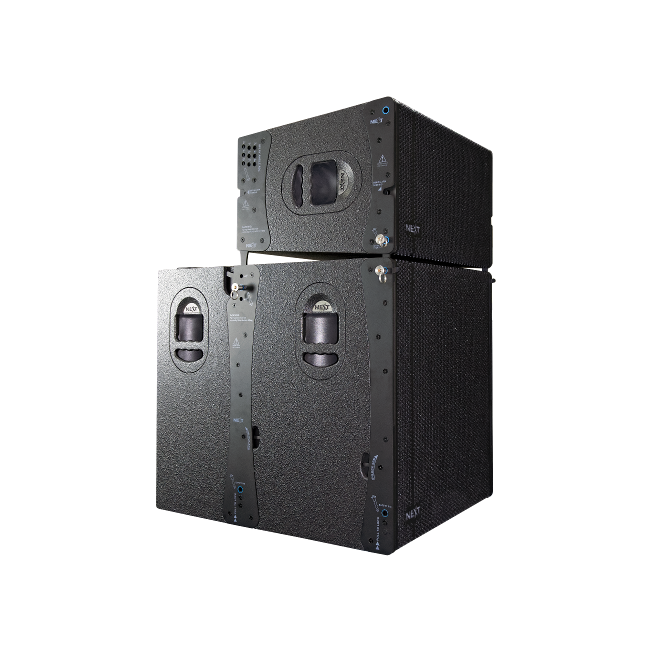

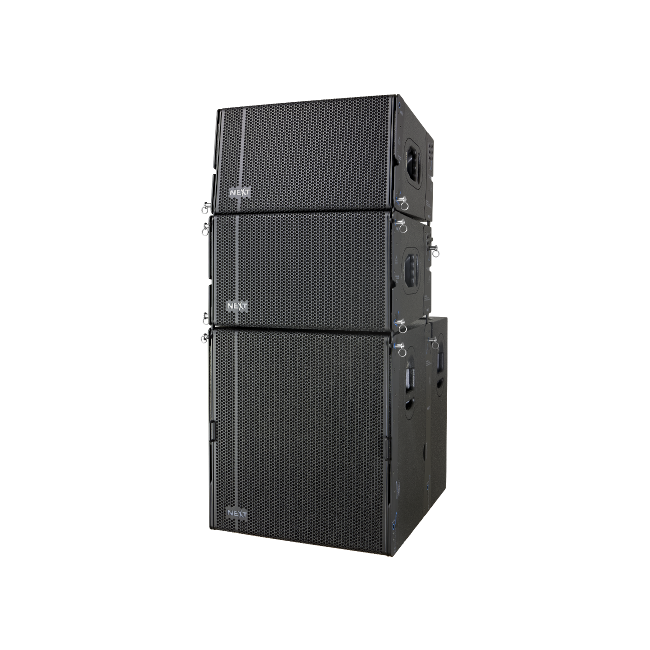

    The Active Hybrid-Horn Arrayable Subwoofer LAs118A is equipped with a custom made B&C, long excursion, 18" neodymium woofer and is internally powered by a DPAmplifier module. As it shares the same rigging technology with the LA122A and LA122WA, a flexible integration, both on the ground or on the top of the LA122A arrays, is possible. In addition it may also be used in arrays consisting entirely of LAs118A subwoofers.

    Prekės ženklas
    NEXT
  • Technical Data

    • Speaker Type: Active Hybrid-Horn Subwoofer

    Acoustical Data

    • Frequency Response (-6dB): 38Hz - 160Hz

    • Calculated Max. SPL (Cont/Peak): 136.4dB/139.4dB (Half-space)

    Drivers

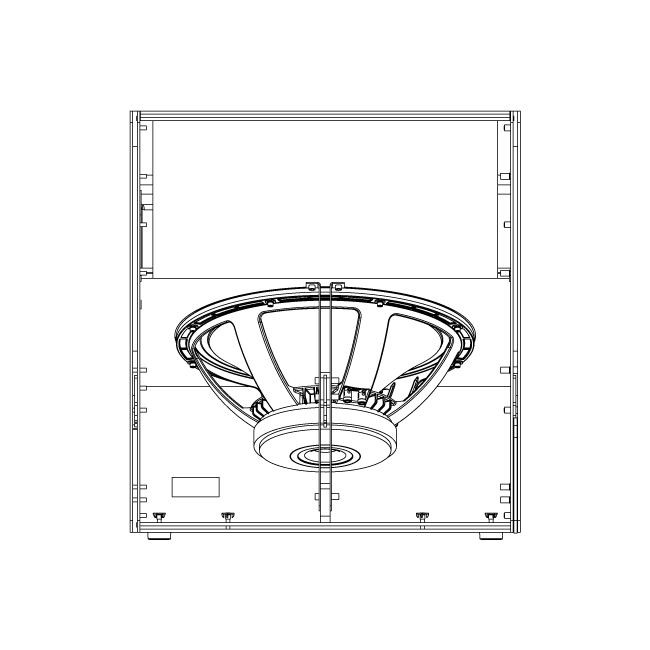

    • Low Frequency: 1 x 18" (460mm), 4" (100mm) VC, B&C custom speaker

    Electrical Data

    • Connectors: Signal: 2 x XLR ; Power: 2 x powerCON

    Amplifier Module

    • Amplifier Technology: Switched mode class D with DSP

    • Section Power (RMS/Program/Peak) LF: 2200W/2960W/5920W

    • Controller: PC controlled Networkable DSP 24bit/48kHz

    • System Presets: 6 Factory and 2 User, selectable via software or rear panel switch

    • PC Control: Via RS485 and suplied software "SOUNDWARE"

    • DSP Adjustable Parameters: 6 PEQ, Delay, HPF, LPF, Bass Enhancer, Level, Polarity, Mute

    • AC Operating Voltage: 180V - 245VAC

    • Nominal Power Consumption: 770W

    Enclosure

    • Dimensions (WxHxD): 602 x 664 x 750mm (23.7 x 26.14 x 29.53in)

    • Net Weight: 67.3kg (148.4lb)
