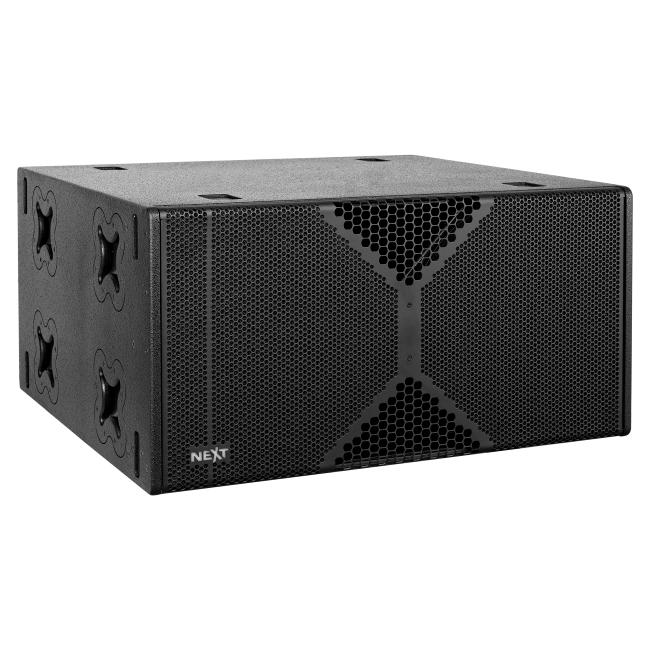

LAs418A - Active Double Bass Reflex Subwoofer

  • LAs418A - Active Double Bass Reflex Subwoofer

    Kodas: NEXT LAs418A

    The LAs418A houses two long excursion and very high power B&C 18" drivers powered by the DPA3000 (power module with DSP). This unit is capable of delivering up to 3200Wrms with a magnificent precision and punch at incredible SPL, combining optimized acoustic, electro-acoustic and electronic solutions to maximized efficiency.

  • Technical Data

    • Speaker Type: Active High Power Reflex Subwoofer

    Acoustical Data

    • Frequency Response (-6dB): 28Hz - 250Hz

    • Low Frequency Extension (-10dB): 24Hz

    • Calculated Max. SPL (Cont/Peak): 140dB/143dB (Half-space)


    • Low Frequency: 2 x 18" (460mm)/4"(100mm) VC, high excursion, B&C custom speaker

    Electrical Data

    • Connectors: Signal: 2 x XLR ; Power: 2 x powerCON ; Control: RS485/USB

    Amplifier Module

    • Amplifier Technology: PFC switched mode class D with DSP

    • Section Power (RMS/Program/Peak) LF: 3200W/4500W/6400W

    • Controller: PC Controlled DSP 24bit/48kHz - Powersoft Armonia

    • System Presets: 3 Factory and 1 User, selectable via software or rear panel switch

    • PC Control: Ethernet connection to Powersoft Armonia

    • DSP Adjustable Parameters: 5 PEQ, Delay, HPF, LPF, Level, Polarity, Mute

    • AC Operating Voltage: 90V - 264V

    • Nominal Power Consumption: 1200W
