  • Lightsky LED beam

    Kodas: Lightsky LED beam

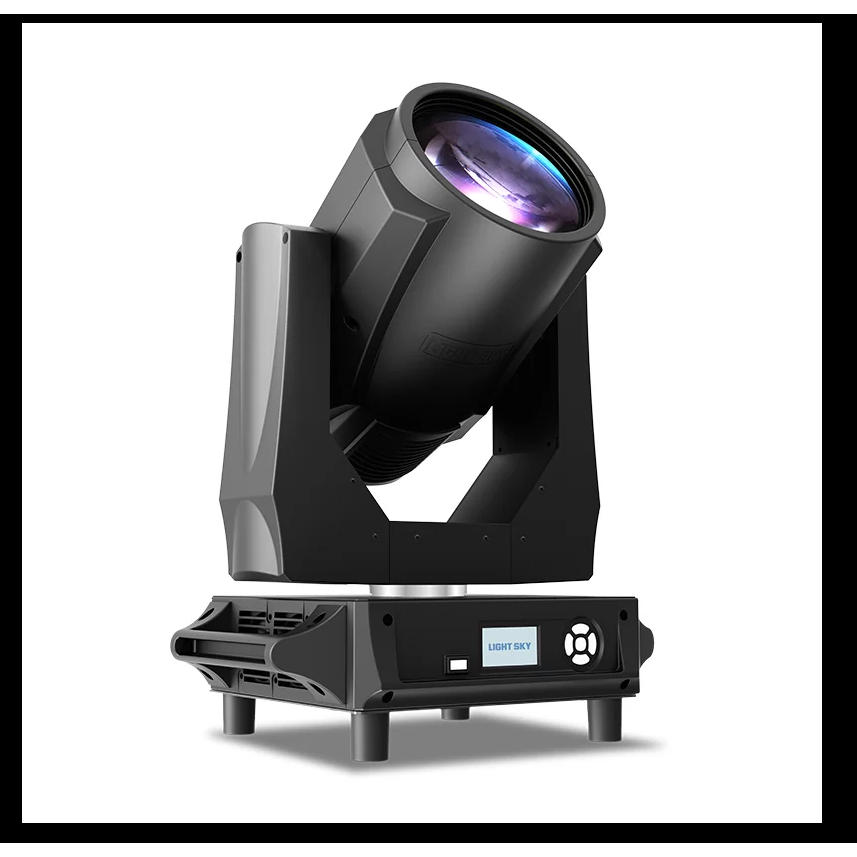

    SCOPE BEAM is a LED Moving Head Beam. It’s energy-saving and environmentally friendly with long lifespan. It produces sharp and full beam with high brightness to meet the needs of different scenarios which makes it more cost-effective to customers. LIGHT SKY has been committed to provide stage lighting products of premium quality to all of our customers.

  • OPTICAL

    Light source : OSRAM White light LED module
    Light source power : 230W
    Median Lifetime : 50000 h
    Luminous Flux : 6850lm
    CCT Light output : 7700K
    CRI : 70
    Beam range : 2.3° beam angle (0.8° / 1.5° beam angle selection)
    Output lens diameter : φ163mm
    Light output : 46948 lux @10m

    COLOR

    Colour Wheel : 14 colours + open,Bi-direction rotation and rainbow effect

    GOBO

    Static gobo wheel : 11 Gobos + open + 3 animations range ,Bi-direction flow water

    EFFECTS

    Prism : 8 face prism+16 face double prism,multiple prism combination effect, prism macro effect
    Frost effect : adjustable wash effect angle
    Focus : Motorized focus
    Strobe : Pre-programmed random strobe & pulse effects(0.5-25Hz/second)
    Dimmer : 0-100% linear adjustment

    CONTROL

    Setting & Addressing : Automatic charge battery, IP could be set without electricity; RDM two-way data transmission, Remote reset DMX address
    Display : The display panel adopts a 2.0-inch LCD12864 LCD screen
    Protocols : DMX-512, RDM
    Control channels : 14CH、16CH、16PLUS

    SOFTWARE

    Intelligent control : Display board can record device’s using time, show device’s temperature, channel data and software version.
    Error alarm : Automatic alarm for fixture failure
    Software upgrade : Insert USB upgrade software

    X/Y ANGLE OF MOTION

    Pan movement : 540°
    Tilt movement : 250°
    Pan / Tilt Resolution : 2.11°/0.98°
    Movement control : Standard and Speed
    Pan / Tilt : Automatic Pan / Tilt position correction

    POWER

    Voltage range : AC100-240V 50/60Hz;
    Power rating : 350W;
    Power in connector : Neutrik power
    DMX and RDM data in/out : Locking 3-pin & 5-pin XLR

    SIZE & WEIGHT

    Product dimension : 380x280x529(mm)
    Packing dimension (carton) : 400x345x570(mm)
    N.W : 18.8Kg/pcs
    G.W : 21.2Kg/pcs
    Flightcase size(2pcs) : (LxWxH)865x470x740(mm)
    N.W(2PCS) : 37.6Kg
    G.W(2PCS) : 71.8Kg

    OTHERS

    Lamp hook design : Integrated foldable hanger design, more convenient for disassembly and transportation
    Structure : Heat-proof plastic+module pressing alloy materials.
    IP rate : IP20 protection
    Accessory : clamp, DMX cable ,AC Power cable,Neutrickpower con(white),safety rope,singal cable, service card,instruction manual
