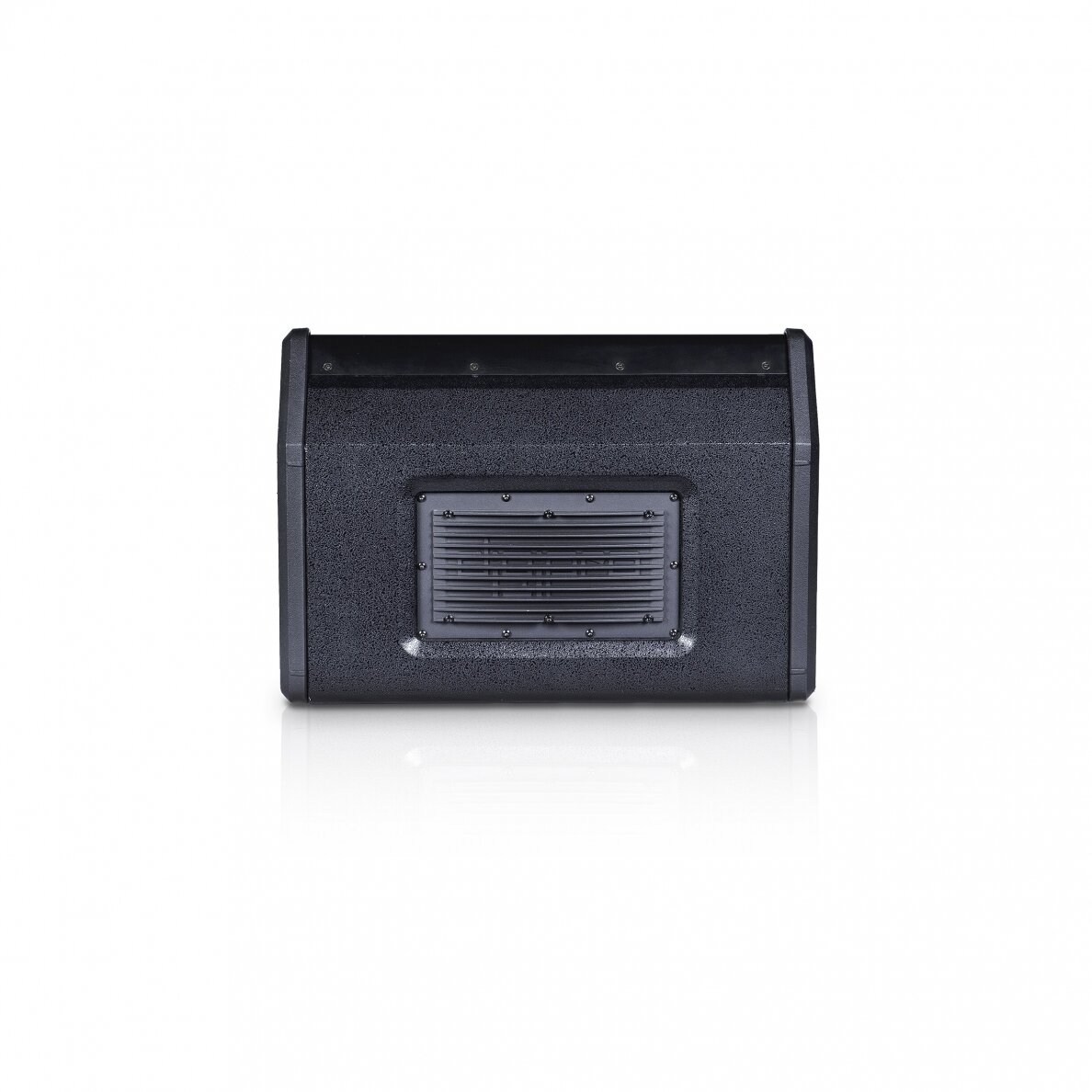

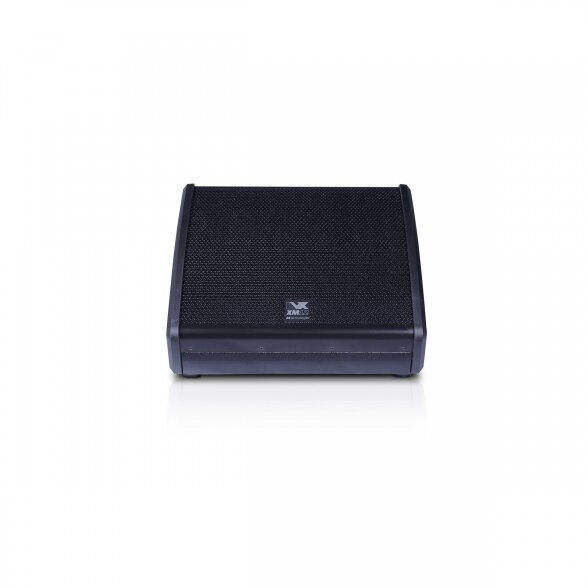

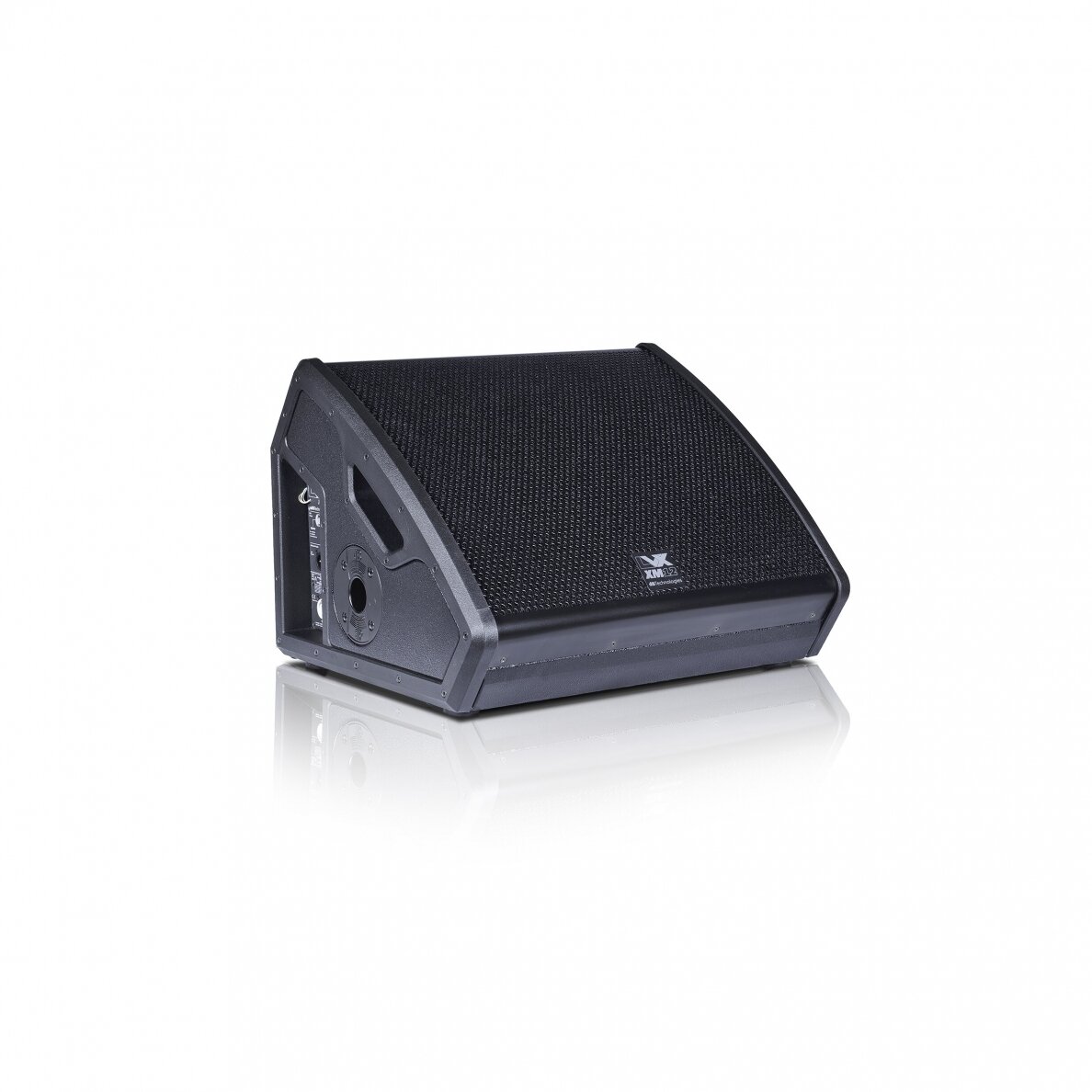

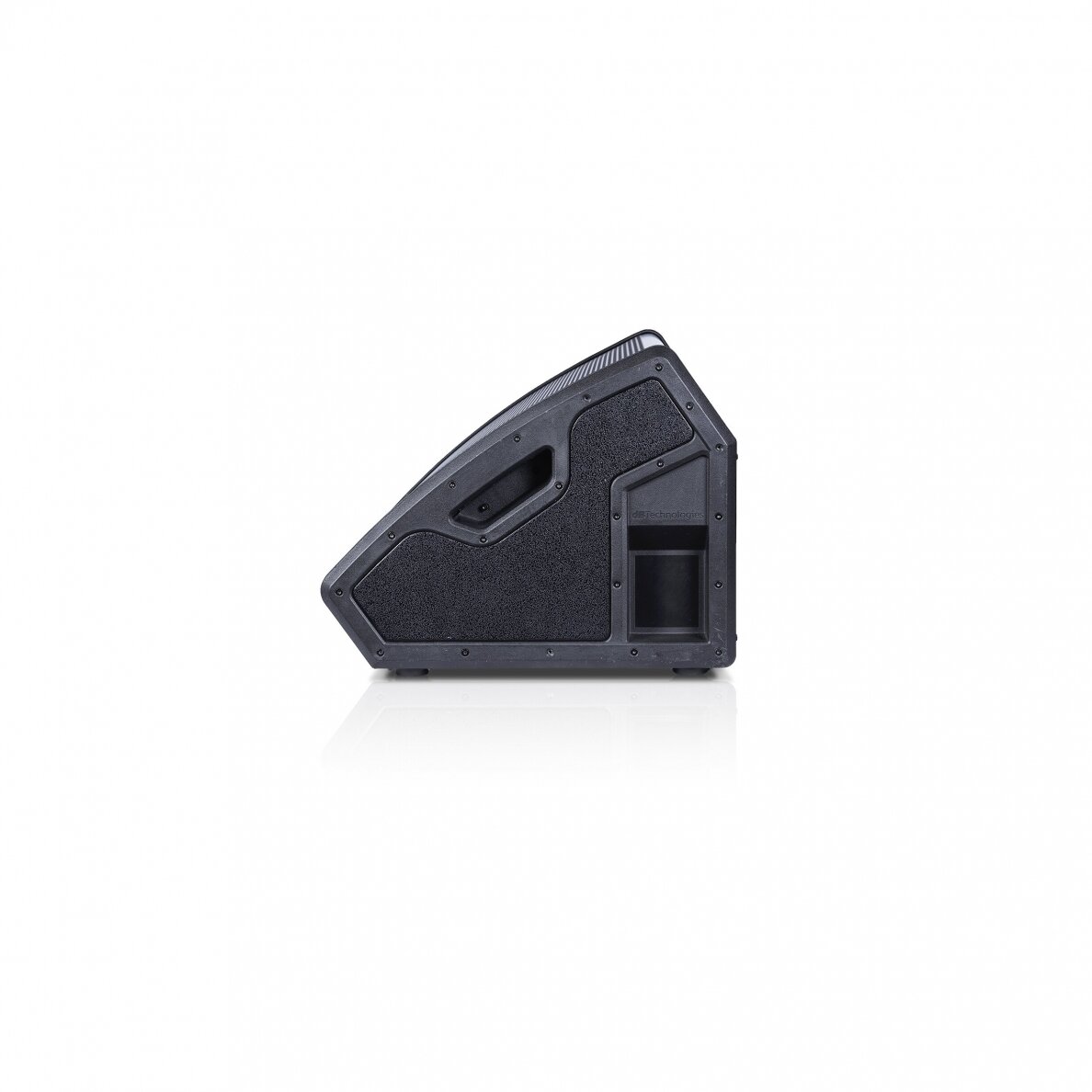

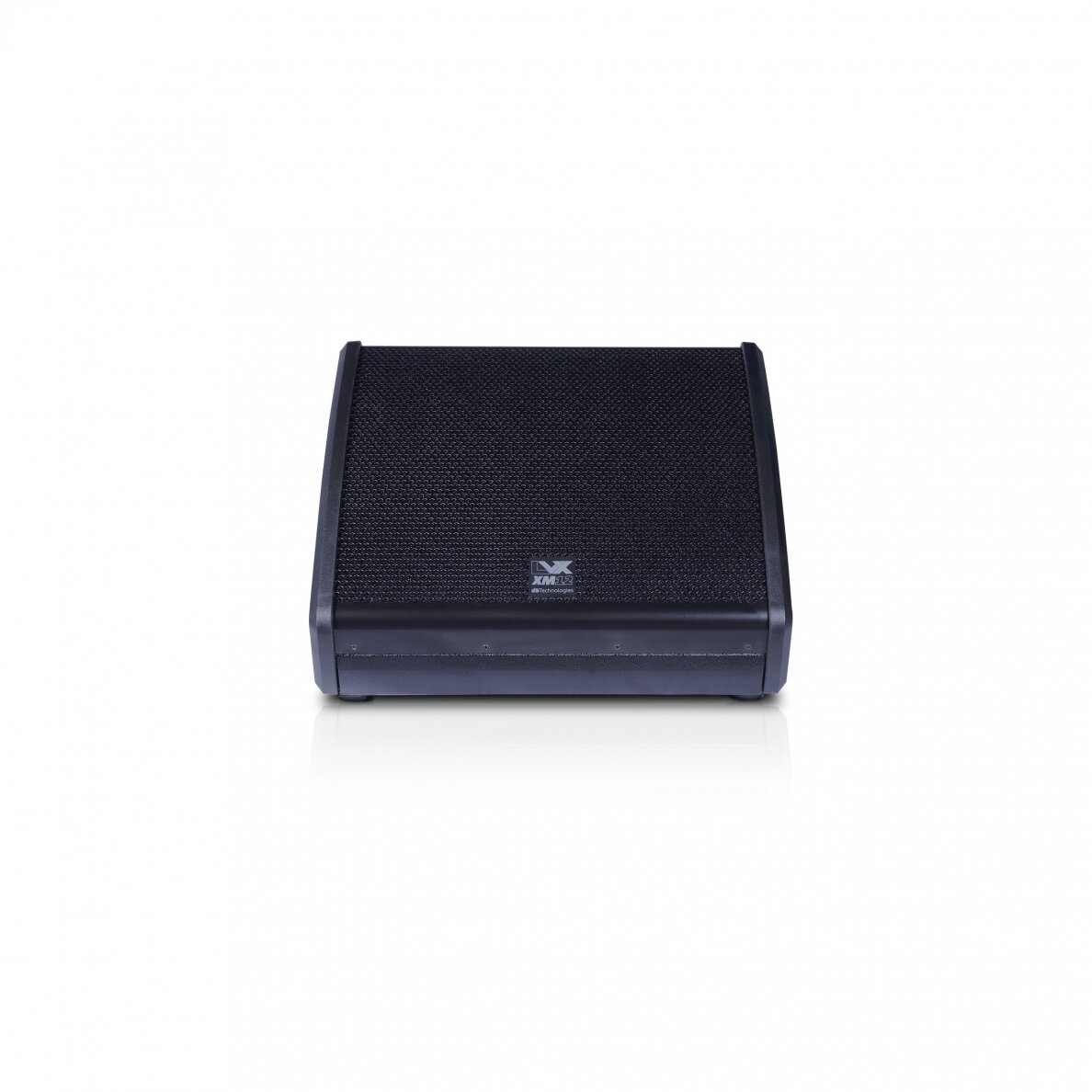

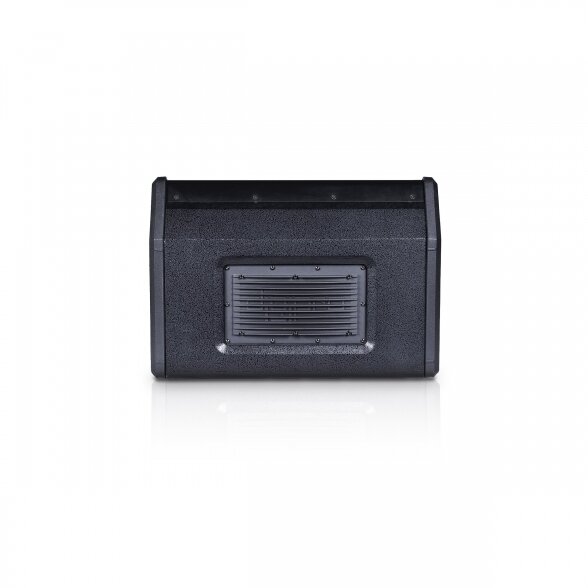

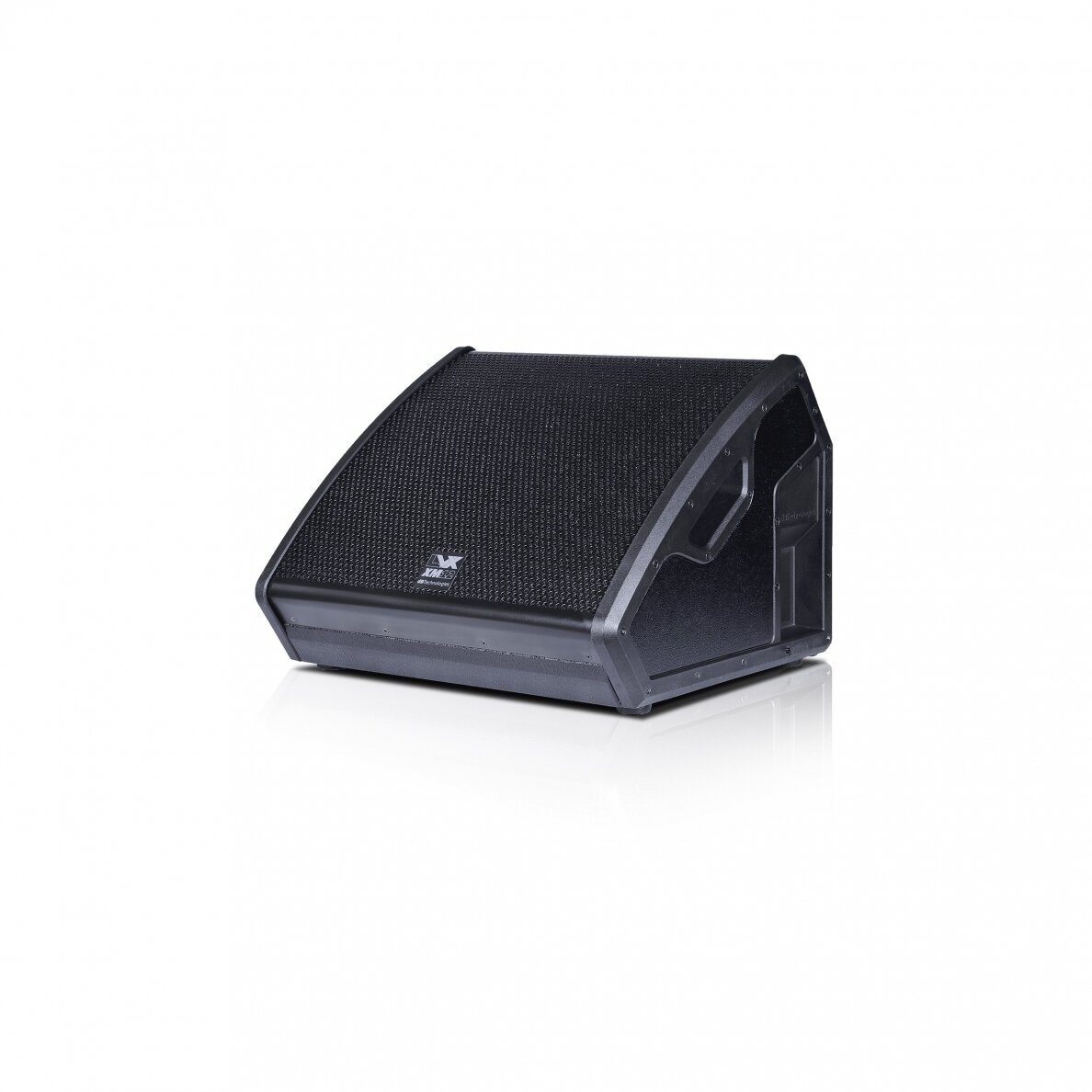

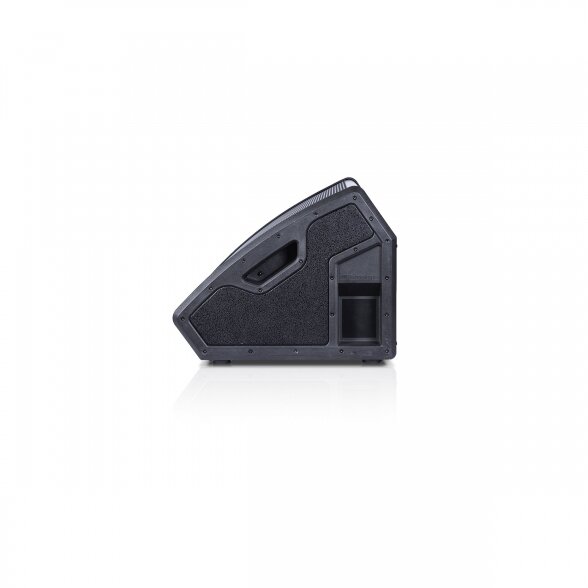

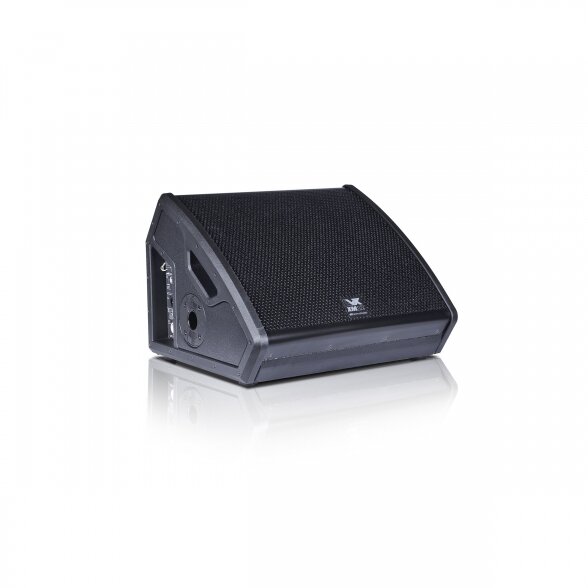

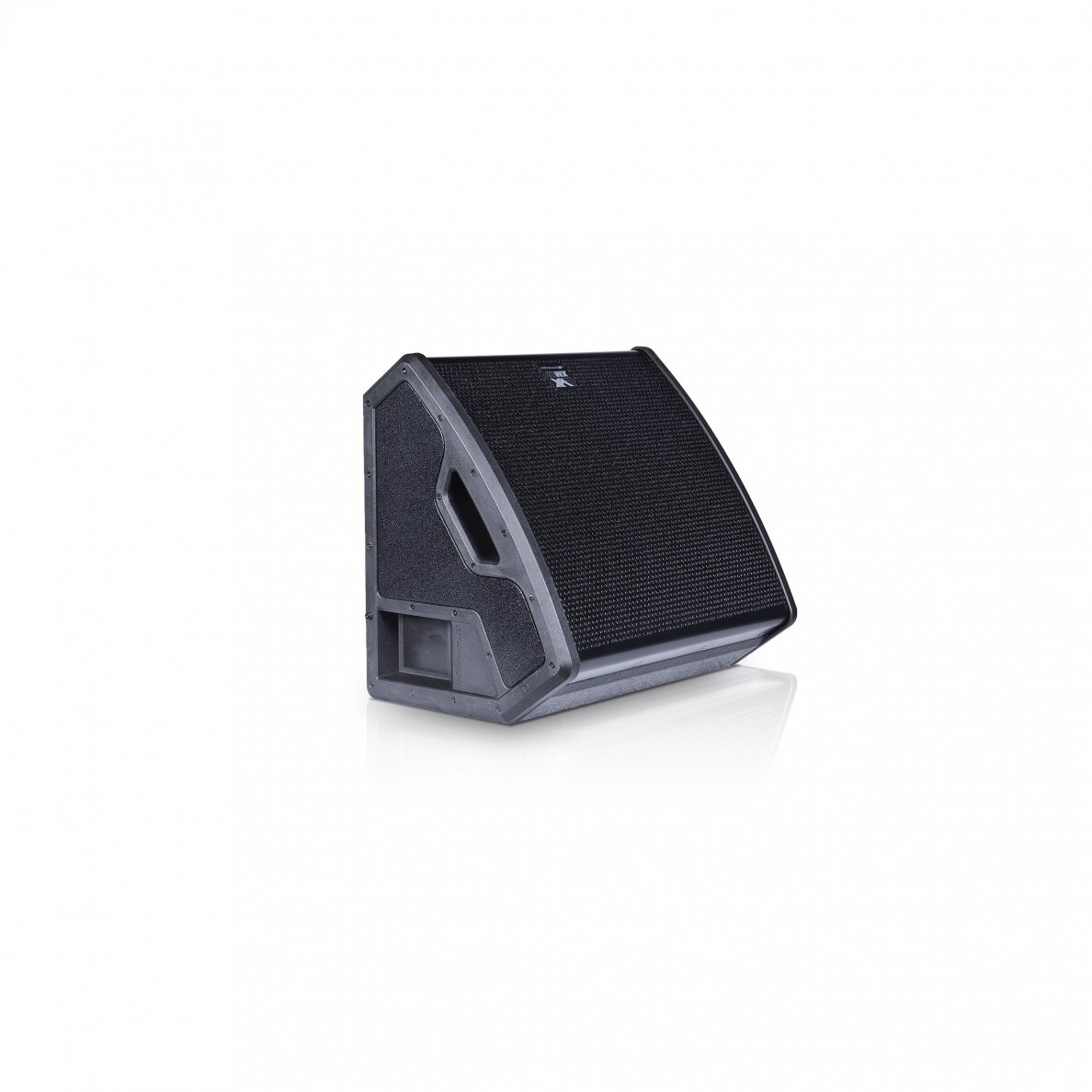

dB Technologies LVX XM 12 - Professional stage monitor

  • dB Technologies LVX XM 12 - Professional stage monitor

    Equipped with heavy duty components and featuring a particular coaxial horn design, LVX XMs wedge deliver a powerful yet clear sound quality, raising the bar for intelligibility, definition and ease of use. These active wedges respond to all those live music and touring requirements where sound reinforcement systems must be lightweight, portable, and road resistant.

  • Technical Data


    Speaker Type: 2-Way Active Coaxial Stage Monitor

    Acoustical data

    • Frequency Response: [- 6 dB]69 - 17,800 Hz

    • Max SPL: 127 dB

    • HF: 1 " Exit 1,4" v.c.

    • Directivity (HxV): 90° x 70°

    • LF: 12", 2,5 v.c.

    Amplifier

    • Amp Technology: Digipro® G3

    • Amp Class: Class D

    • Power RMS: 600 W

    • Peak Power: 1200 W

    • Power Supply: SMPS with PSU Auto-range

    • Power Connection: PowerCon In/Link

    • Cooling: Convection

    Processor

    • Controller: DSP 56 bit

    • Converter AD/DA: 24 bit/48 kHz

    • System Presets: 8 presets

    • Limiter: Peak, RMS, Thermal

    • Processing (filters): Linear Phase FIR Filters

    • Controls: Rotary 8 positions, MIC/LINE switch

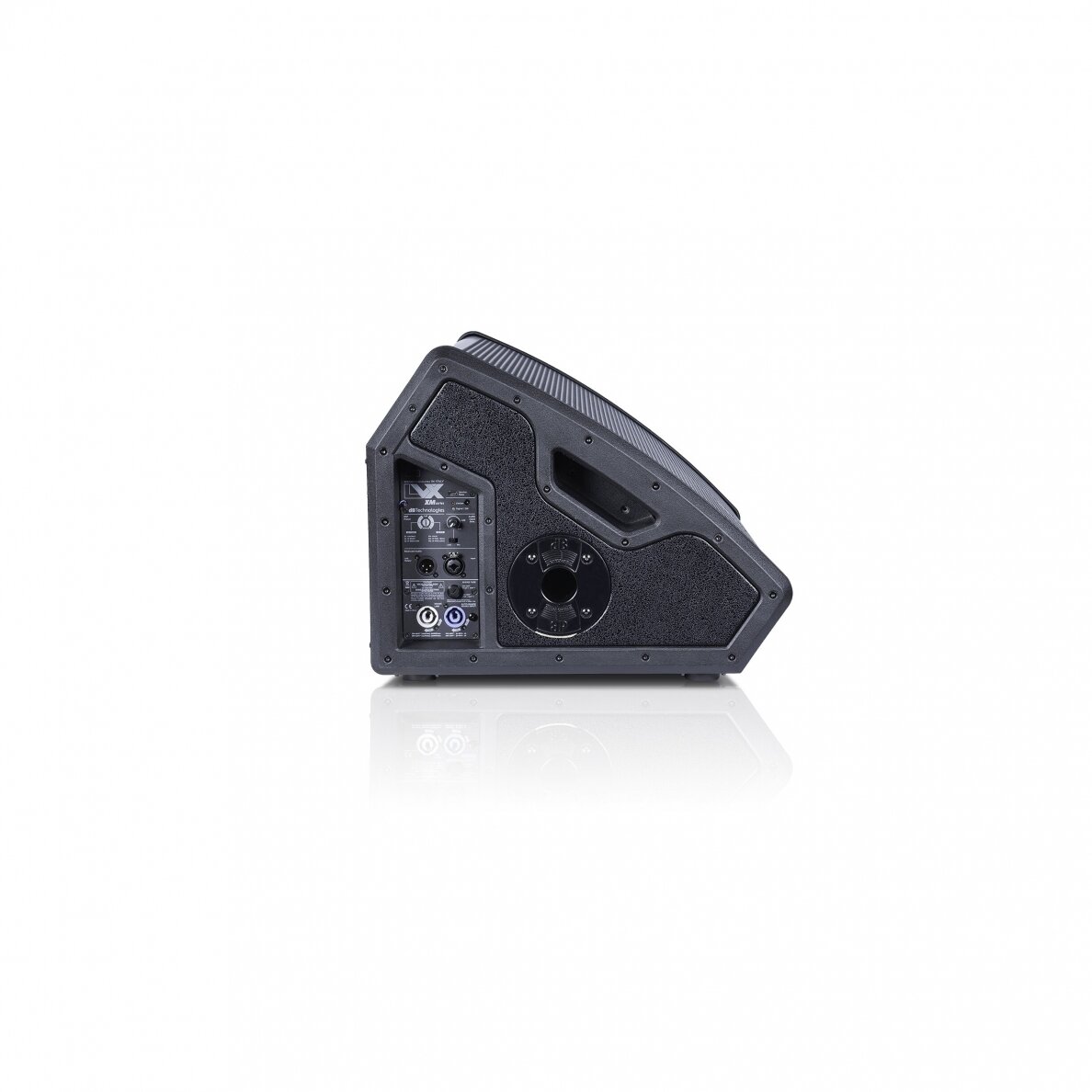

    Input

    • Mains Connections: PowerCON in/link

    • Signal Input: 1xCombo IN (XLR/Jack)

    • Signal Output: 1xXLR link OUT

    • USB connector: Mini USB B-Type (service only)

    Mechanics

    • Housing: Plywood with black PVC Cover

    • Grille: Metal, black painted

    • Handles: 2, chassis integrated

    • Pole Mount: D36 mm

    • Width: 515 mm (20,28 in)

    • Height: 460 mm (18,11 in)

    • Depth: 370 mm (14,57 in)

    • Weight: 20,1 kg (44,31 lbs)
