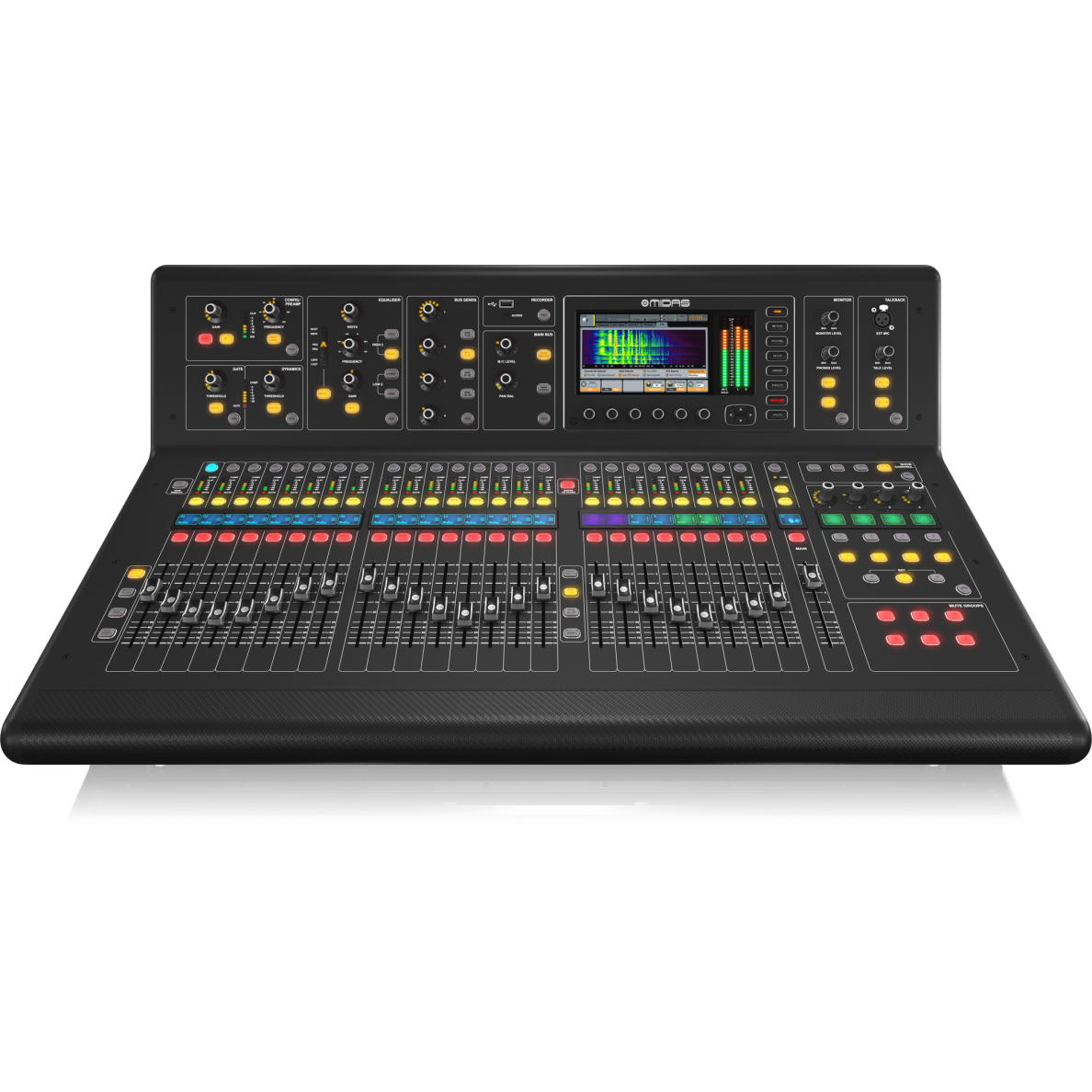

Specification

Processing

Input Processing Channels: 32 Input Channels, 8 Aux Channels, 8 FX Return Channels

Output Processing Channels: 16

16 aux buses, 6 matrices, main LRC: 100

Internal Effects Engines (True Stereo / Mono): 16

Internal Show Automation (structured Cues / Snippets): 500 / 100

Internal Total Recall Scenes (incl. Preamplifiers and Faders): 100

Signal Processing: 40-Bit Floating Point

A/D Conversion (8-channel, 96 kHz ready): 114 dB Dynamic Range (A-weighted*)

D/A Conversion (stereo, 96 kHz ready): 120 dB Dynamic Range (A-weighted*)

I/O Latency (Console Input to Output): 0.8 ms

Network Latency (Stage Box In > Console > Stage Box Out): 1.1 ms

Connectors

Midas PRO Series Microphone Preamplifier (XLR): 32

Talkback Microphone Input (XLR): 1

RCA Inputs / Outputs: 2

XLR Outputs: 16

Monitoring Outputs (XLR / ¼" TRS Balanced): 2

Aux Inputs/Outputs (¼" TRS Balanced): 6

Phones Output (¼" TRS): 2 (Stereo)

Digital AES/EBU Output (XLR): 1

AES50 Ports (Klark Teknik SuperMAC): 2

Expansion Card Interface: 32 Channel Audio Input / Output

ULTRANET P-16 Connector (No Power Supplied): 1

MIDI Inputs / Outputs: 1

USB Type A (Audio and Data Import / Export): 1

USB Type B, rear panel, for remote control: 1

Ethernet, RJ45, rear panel, for remote control: 1

Mic Input Characteristics

Design: Midas PRO Series

THD+N (0 dB gain, 0 dBu output): <0.01% (unweighted)

THD+N (+40 dB gain, 0 dBu to +20 dBu output): <0.03% (unweighted)

Input Impedance (Unbalanced / Balanced): 10 kΩ / 10 kΩ

Non-Clip Maximum Input Level: +23 dBu

Phantom Power (Switchable per Input): +48 V

Equivalent Input Noise @ +45 dB gain: -125 dB (22 Hz-22 kHz, unweighted)

CMRR @ Unity Gain (Typical): >70 dB

CMRR @ 40 dB Gain (Typical): >90 dB

Input/Output Characteristics

Frequency Response @ 48 kHz Sample Rate: 0 dB to -1 dB (20 Hz-20 kHz)

Dynamic Range, Analogue In to Analogue Out: 106 dB (22 Hz-22 kHz, unweighted)

A/D Dynamic Range, Output (Typical): 109 dB (22 Hz-22 kHz, unweighted)

Crosstalk Rejection @ 1 kHz, Adjacent Channels: 100 dB

Output level, XLR Connectors (Nominal / Maximum): +4 dBu / +21 dBu

Output Impedance, XLR Connectors (Unbalanced / Balanced): 50 Ω / 50 Ω

Input impedance, TRS Connectors (Unbalanced / Balanced): 20 kΩ / 40 kΩ

Non-Clip Maximum Input Level, TRS Connectors: +21 dBu

Output Level, TRS (Nominal / Maximum): +4 dBu / +21 dBu

Output Impedance, TRS (Unbalanced / Balanced): 50 Ω / 50 Ω

Phones Output Impedance / Maximum output Level: 40 Ω / +21 dBu (Stereo)

Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain: -85 dBu 22 Hz-22 kHz unweighted

Residual Noise Level, Out 1-16 XLR Connectors, Muted: -88 dBu 22 Hz-22 kHz unweighted

Residual Noise Level, TRS and s Monitor out XLR Connector: -83 dBu 22 Hz-22 kHz unweighted
