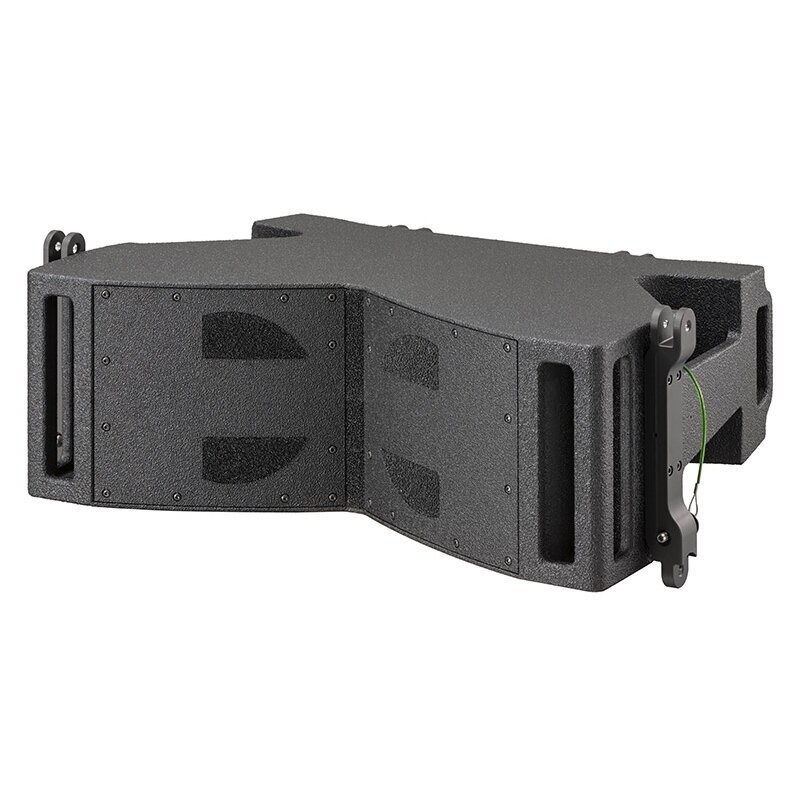

Outline MANTAS 28
Outline MANTAS 28
Kodas: Outline Mantas 2890 € be PVM- Line array element for mid and high frequency reproduction
- Industry standard for sound reinforcement of all kinds and dimensions
- Bold design. Unmistakable “Outline”
- Enormous SPL in spite of its small form factor
- Optimal coupling of array elements up to the highest frequencies
- Full compatibility with Superfly
- Equipped with a 3″ compression driver coupled with a D.P.R.W.G. wave guide
- Designed for bi-amping
- Good cost : efficiency ratio
- 120° horizontal coverage
- High consistency and high efficiency as a result of the very precise cabinet design
- New high-precision integrated rigging hardware
- Ideal as the main system for theatres, medium-size festivals (up to 60 m) and indoor sports venues
- Flexibility: it can be used as delay, side-fill or down-fill for bigger systems (GTO and C-12)
Prekės ženklasOutline-
PERFORMANCE SPECIFICATIONS
-
Frequency Response: (-10 dB) 90 Hz – 18 kHz
-
Horizontal Dispersion: 120°
-
Vertical Dispersion: Array design dependent
-
Splay Angles available from: 0° to 7.5° in 0.5° step with additional 0.25° position
-
Operating configuration: Bi-amplified
-
Impedance Midrange (Nom/Min): 8 Ω / 6.4 Ω
-
Impedance High (Nom/Min): 8 Ω / 8.4 Ω
-
Watt AES Midrange (Continuous/Peak): 400 W / 1600 W
-
Watt AES High (Continuous/Peak): 110 W / 440 W
-
Maximum SPL Output, one box *: 139 dB SPL
-
Maximum SPL Output, four boxes *: 151 dB SPL
* calculated using +10 dB Crest Factor signal @ 1 m, Free Field
PHYSICAL
-
Component Midrange: 2 x 8” NdFeB partially horn loaded mid woofer
-
Component High: 1 x 3” diaphragm NdFeB compression driver, DPRWG loaded
-
Connectors: 2 x NL4 in parallel
-
Cabinet Material: Baltic birch plywood
-
Cabinet Finish: Black polyurea coating
-
Grill: Epoxy powder coated
-
Rigging: Integrated high-load aluminum hardware
-
Height: 278 mm – 11”
-
Width: 756 mm – 29 3/4”
-
Depth: 518 mm – 20 3/8”
-
Weight: 24 kg – 52.9 lb
-
